Machine introduction

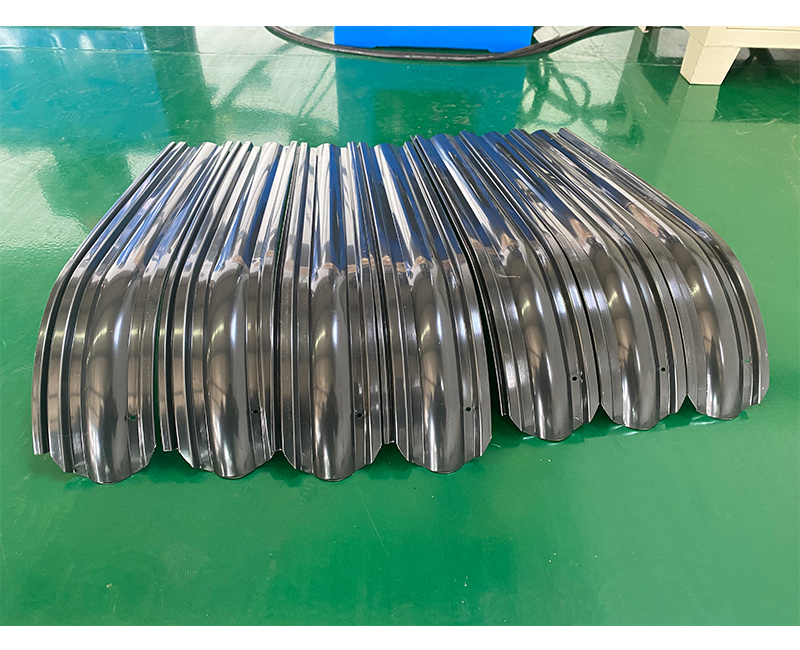

Rainboard forming machine is mainly used for producing rain boards (also known as rain covers or canopies) for use above building windows or other areas that need to block rainwater. This type of machinery can produce rain mats of various materials, including color steel plates and precast concrete slabs.
1. Color steel plate rain lap board forming machine:
-This type of machine can produce wavy colored steel plates, which are used to make eaves boards or rain roof boards.
-Rainboard made of color steel plate material has the characteristics of being sturdy, durable, easy to construct, and cost-effective.
-The application scenarios are wide, including eaves of large and medium-sized factories, agricultural markets, freight yards, breeding farms, sheds, chemical enterprises, new rural construction, villas, prefabricated houses, steel structure engineering, construction site fences, canopies, warehouses, public buildings and other buildings.
2. Concrete precast rainwater slab forming machine:
-This machine can automate the production of precast concrete slabs without the need for a specific workspace or hardened cement countertop.
-Equipped with automatic paper and mesh laying functions, it can adapt to different wind directions and wind conditions.
-The production process adopts automatic walking mode, which can operate continuously and form in one go.
-Compared with traditional manual molding methods, this type of machine produces rain mats with more uniform reinforcement, higher strength, faster speed, better quality, and saves more manpower and material resources.
Product introduction

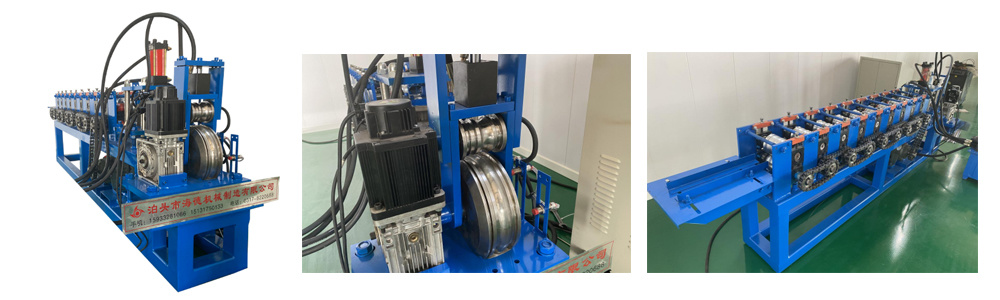

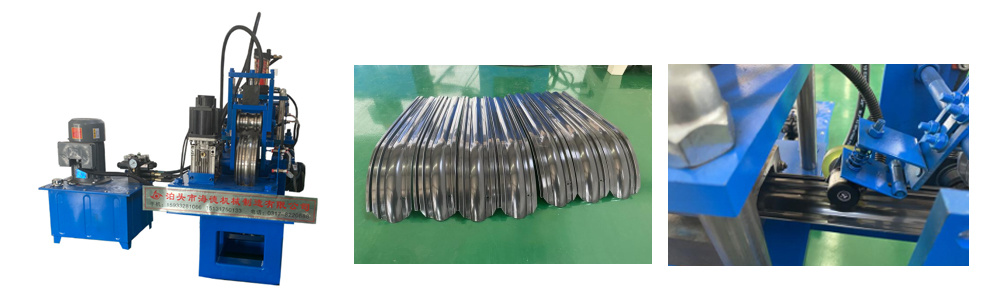

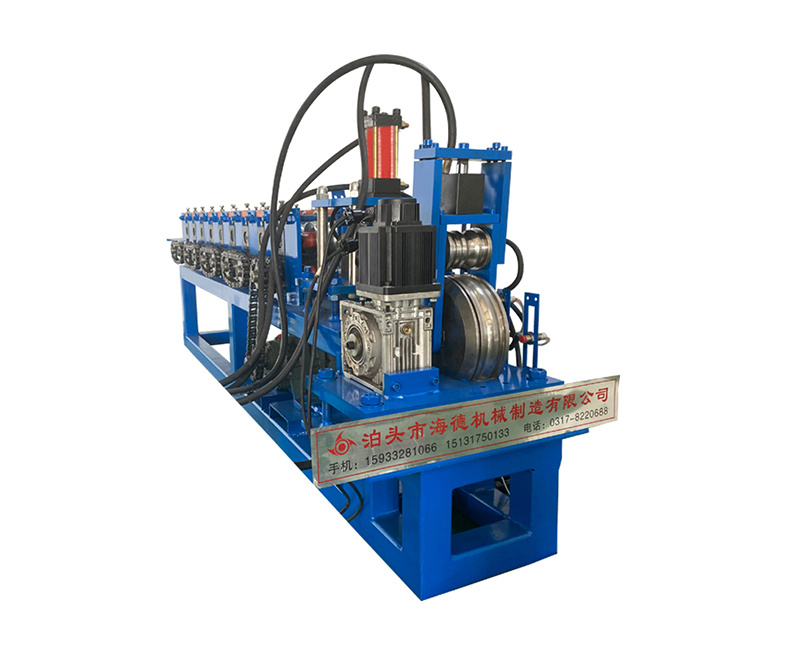

Sunshade roll forming machine
Suppliers of various rain support boards
Composition of Rainboard Forming Machine:
1. Feeding system
-Function: Responsible for feeding raw materials (such as color steel plates or concrete) into the forming machine.
-Composition: may include conveyor belts, roll racks, automatic shearing devices, etc.

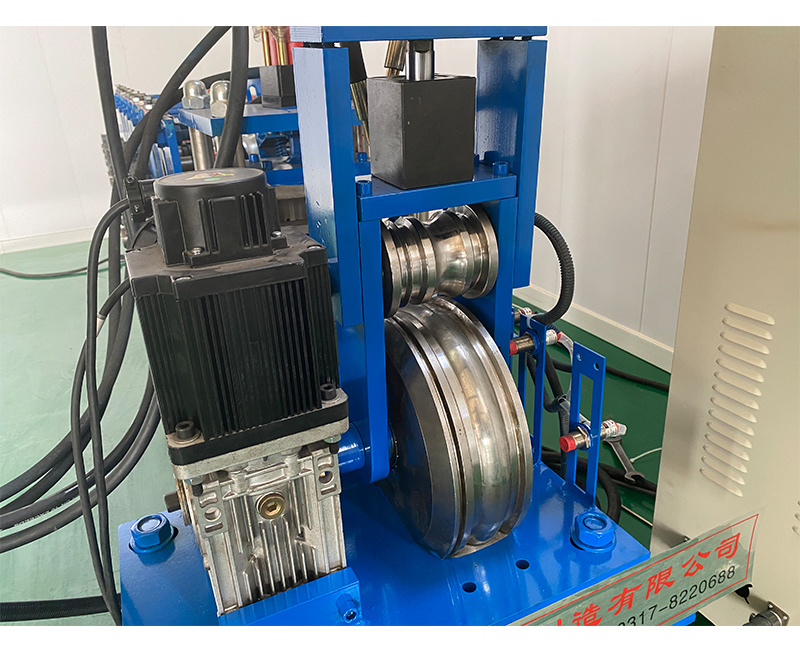

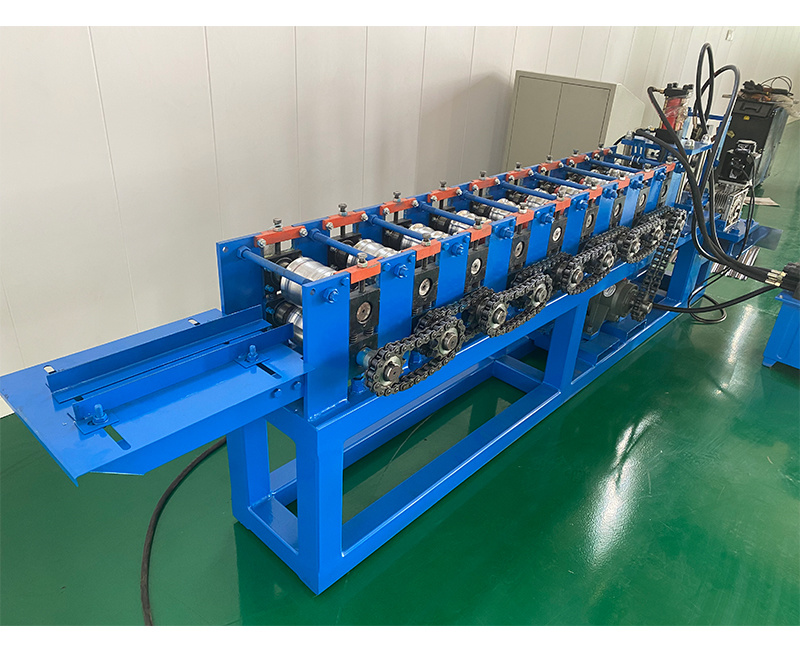

2. Forming system
-Function: Shape the material into the desired shape through molds or rollers.
-Composition: Usually composed of a series of rollers or molds arranged in a certain order, gradually bending the material into a predetermined shape.
3. Cutting system
-Function: Cut the formed sheet to achieve the desired length.
-Composition: including hydraulic cutting devices or mechanical cutting tools.
4. Control system
-Function: Control the entire operation process of the molding machine, including speed adjustment, automatic counting, fault detection, etc.
-Composition: Generally includes electronic control components such as PLC (Programmable Logic Controller), touch screen operation interface, etc.
5. Auxiliary equipment
-Function: Assist the main molding process, such as providing necessary support or adjustment during the molding process.
-Composition: may include leveling devices, straightening devices, positioning devices, etc.
6. Conveyor system
-Function: Transport the formed rain cover board to the designated location.
-Composition: including chain transmission devices or belt conveyors, etc.
7. Security Protection System
-Function: Ensure the safety of operators and the normal operation of equipment.
-* * Composition * *: Safety devices such as safety doors, emergency stop buttons, and safety light curtains.

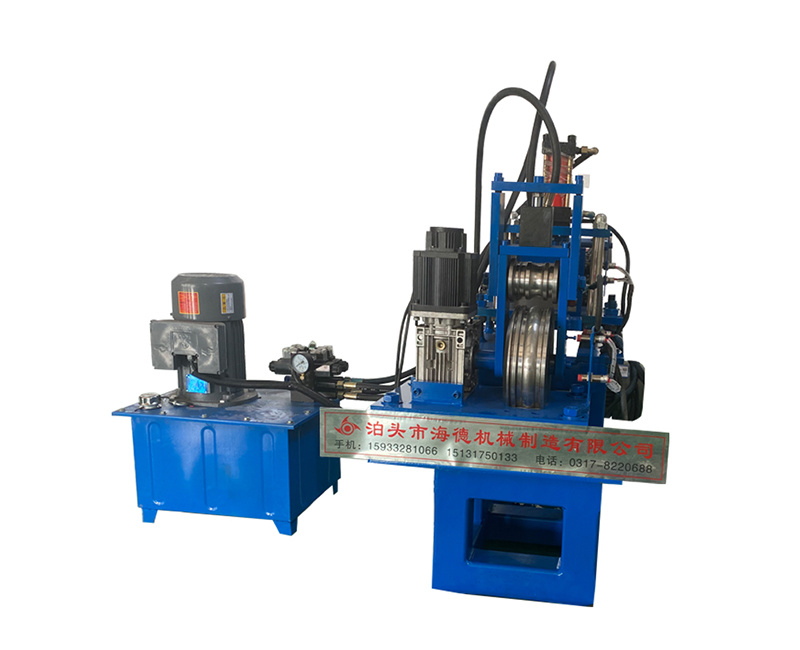

8. Hydraulic system (for models that require hydraulic drive)
-Function: Provide power for the cutting system.
-Composition: Hydraulic pump, oil tank, hydraulic cylinder, corresponding pipelines and valves, etc.
9. Cooling system (if required)
-Function: To cool the high-temperature components during the molding process and ensure the stable operation of the equipment.
-Composition: Cooling water circulation system or air cooling system.
Sunshade roll forming machine
Sunshade roll forming machine
The company has vigorously introduced the German professional roller design software COPRA, which can design various rollers according to customer needs.
Manual uncoiler
Free manual uncoiler
The coil inner diameter: φ450-550mm;
Max. outer coil diameter: φ1000mm-1250mm
The max capacity: 5T
Machine shaft
All machines are finished with Cr12 rollers
Shaft hardness 58-60
Hardening depth 0.8mm
Surface roughness ra0.1m-0.35m
High quality shaft with a service life of over 15 years
Customer usage site
We designed and produced this machine for the customer based on the product drawings provided by him.
Company Profile
Our products are mainly used in the production of steel structure industry C, Z type sandalwood, floor bearing formwork and roof, wall maintenance structure color board or insulation board; Environmental protection industry dust anode plate, cathode plate; Transportation industry high-speed guard plate, automobile cold-formed profiles; All kinds of glazed tile/press type, building floor, rolling shutter door and all kinds of cold bending forming equipment, can also provide users with a variety of coil unwinding, leveling, longitudinal shear winding, transverse shear palletizing production lines.
Our Customers
We sell products to the United States, Australia, the Netherlands, Germany, Ecuador, Bolivia, Thailand, Malaysia, Indonesia, India, the Philippines, Bangladesh, Nigeria, South Africa, Ethiopia, Syria, Libya, Ghana, Sudan, Saudi Arabia, the United Arab Emirates, Turkey, Azerbaiian and other markets.
Packing
FAQs
1. Does your company can customized my needed profile?
Yes sir/Madam. Our machines are all customized according to customers' requests. Just provided me your needed profile drawing and we can give you our professional machine design solution.
2. If i don't have profile drawing, but i want to buy one machine, can you help me?
Yes sir/ Madam. If you don't have profile drawings, the solutions have:
2.1 : Provide me with your profiles' pictures ;
2.2 : Tell me your country and i will check if we sell similar / related profile machines to your there. I will recommend you related profile drawings.
2.3 : Tell me any information you have and it will be helpful for me to clear your needed profiles. and then quote you.
3. What your company advantages?
Yes sir/Madam. Our advantages have :
3.1: We are a 15 years big factory. We have abundant machine designing and making experience. We can give you the best machine solution.
3.2: We have completed production system. And more than 20 sets of CNC machines which can support lots of machine orders' making and guarantee the delivery.
3.3 : We have 20 years foreign trade exported experience. Our sellers abundant experience can guarantee you will have a pleasant purchase and use of the machine and after-sales experience. And cooperated with us , you can get more details about the machine, including those problems that you can't think of but we can think of, we can tell you to ensure that you can buy the most suitable machine for you.
3.4 : We are a golden integrity roll forming machine company.
About the after-sale services, no worries, we will responsible for you.
4. Will i receive a good machine ? Same Like I wanted to?
Yes sir/Madam. We will do the machine according to your profile drawing . About the profile drawing, we will confirm with you again before producing your machine. Then, after the machine finished, we will test the machine and guarantee the machine you received is a good machine. Because after you satisfied with the machine, and then you pay balance.
5. What is the machine minimum quantity?
One machine is okay.
6. What is your payment terms?
6.1 : We accept 30% T/T as deposit and 70% T/T as balance before shipping.
6.2 : We accept 100% L/C at sight
6.3: We accept Western Union payments.
6.4 : Other payment terms you want to pay, please let me know and i will check and reply you.
