800 Metal Iron Sheet Roof Tile Roll Forming Machine

Machine introduction

The working principle of a glazed tile forming machine is usually achieved through a series of mechanical operations to produce glazed tiles, including but not limited to the following steps:

-Loading: Place the raw materials on the loading rack.

-Feed: Raw materials enter the interior of the machine through the feed guide device.

-Molding: Using a special mold to shape the material into a predetermined shape of glazed tiles through pressure.

-Cooling: The formed glazed tiles need to be cooled and shaped.

-Cutting: Cut the glazed tiles according to the required length.

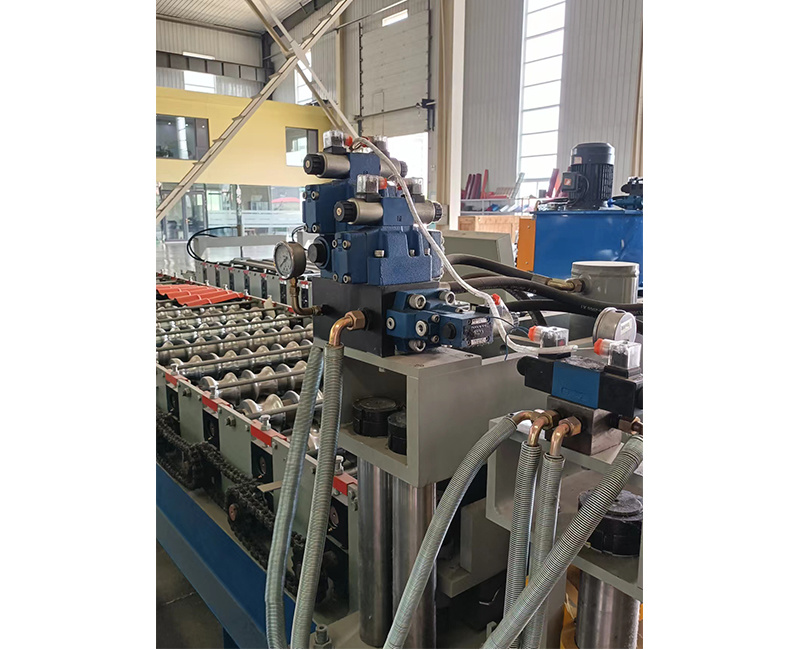

This type of machine usually consists of a loading rack, a loading rack support, a feeding guide device, a forming host, a punching device, a forming shearing device, a hydraulic station, a computer control cabinet, and other parts. It can produce glazed tiles with exquisite appearance, unique style, and suitable for various architectural decoration needs.

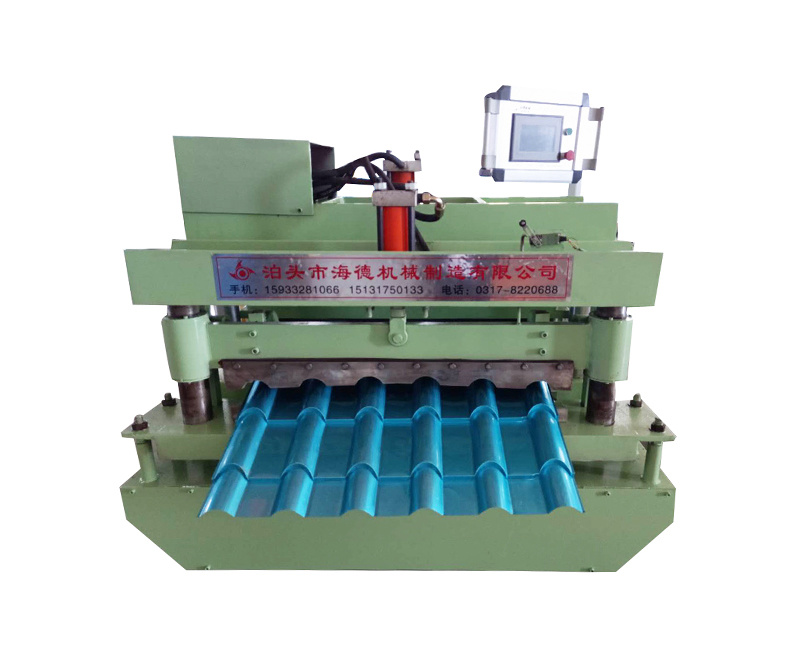

800 Metal Iron Sheet Roof Tile Roll Forming Machine

High quality glazed tile roofing sheet making machine

The Panels made by our Roll Forming Machine have beautiful appearance and bright color.

They are widely used in gardens, factories, resorts, hotels, exhibition halls, vacationlands, ancient architectures and modern villas.

Working Flow

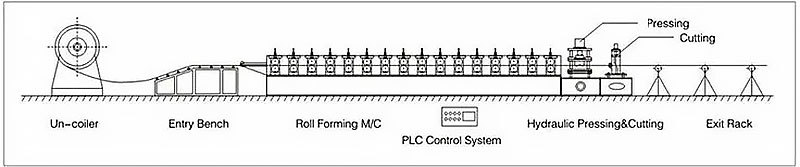

Uncoiling — Sheet guiding — Roll forming — Measure length — Pressure pattern — Cutting — Panels to product stand

Product Description

Name	Galzed floor color coated tile making machine sheet machinery
Suitable Material	Colored or galvanized steel coil, HRB60 or equivalent
Thickness Range	0.3-0.8 mm
Coil Width Range	914, 1000, 1220 or 1250 mm. According to your actual drawing.
Electric Power	380V, 50 Hz, 3 phase or according to your need.
Dimension	About 7.21.31.1m(LWH), as per the drawing
Cutting	Automatically stop and cutting when it comes to the set length.
Length of the Sheet	You can set the length according to your need. It is controlled by PLC length accuracy: ±1mm.

High quality glazed tile roll forming machine

Choose more sizes - free consultation price

Welcome to consult more other products

We can produce high-quality machines according to the product size you provide

Company Profile

Our products are mainly used in the production of steel structure industry C, Z type sandalwood, floor bearing formwork and roof, wall maintenance structure color board or insulation board; Environmental protection industry dust anode plate, cathode plate; Transportation industry high-speed guard plate, automobile cold-formed profiles; All kinds of glazed tile/press type, building floor, rolling shutter door and all kinds of cold bending forming equipment, can also provide users with a variety of coil unwinding, leveling, longitudinal shear winding, transverse shear palletizing production lines.

Our Customers

We sell products to the United States, Australia, the Netherlands, Germany, Ecuador, Bolivia, Thailand, Malaysia, Indonesia, India, the Philippines, Bangladesh, Nigeria, South Africa, Ethiopia, Syria, Libya, Ghana, Sudan, Saudi Arabia, the United Arab Emirates, Turkey, Azerbaiian and other markets.

Packing

FAQs

1. Does your company can customized my needed profile?
Yes sir/Madam. Our machines are all customized according to customers' requests. Just provided me your needed profile drawing and we can give you our professional machine design solution.

2. If i don't have profile drawing, but i want to buy one machine, can you help me?
Yes sir/ Madam. If you don't have profile drawings, the solutions have:
2.1 : Provide me with your profiles' pictures ;
2.2 : Tell me your country and i will check if we sell similar / related profile machines to your there. I will recommend you related profile drawings.
2.3 : Tell me any information you have and it will be helpful for me to clear your needed profiles. and then quote you.

3. What your company advantages?
Yes sir/Madam. Our advantages have :
3.1: We are a 15 years big factory. We have abundant machine designing and making experience. We can give you the best machine solution.
3.2: We have completed production system. And more than 20 sets of CNC machines which can support lots of machine orders' making and guarantee the delivery.
3.3 : We have 20 years foreign trade exported experience. Our sellers abundant experience can guarantee you will have a pleasant purchase and use of the machine and after-sales experience. And cooperated with us , you can get more details about the machine, including those problems that you can't think of but we can think of, we can tell you to ensure that you can buy the most suitable machine for you.
3.4 : We are a golden integrity roll forming machine company.
About the after-sale services, no worries, we will responsible for you.

4. Will i receive a good machine ? Same Like I wanted to?
Yes sir/Madam. We will do the machine according to your profile drawing . About the profile drawing, we will confirm with you again before producing your machine. Then, after the machine finished, we will test the machine and guarantee the machine you received is a good machine. Because after you satisfied with the machine, and then you pay balance.

5. What is the machine minimum quantity?
One machine is okay.

6. What is your payment terms?
6.1 : We accept 30% T/T as deposit and 70% T/T as balance before shipping.
6.2 : We accept 100% L/C at sight
6.3: We accept Western Union payments.
6.4 : Other payment terms you want to pay, please let me know and i will check and reply you.
