Machine introduction

The gutter forming machine is a mechanical equipment specifically designed for making metal gutters (usually used in roof drainage systems). This machine can process metal sheets into specific shaped gutters through a series of rolling, bending, and other processes.

The following is a typical workflow of a gutter forming machine:

1. Continuous molding:

-The board is formed by a series of pre-set forming rollers. These rollers are arranged in a specific design sequence, and with each set of rollers, the sheet is gradually bent into the desired shape.

-During the rolling process, the sheet will undergo multiple bending and straightening until the final gutter shape is formed.

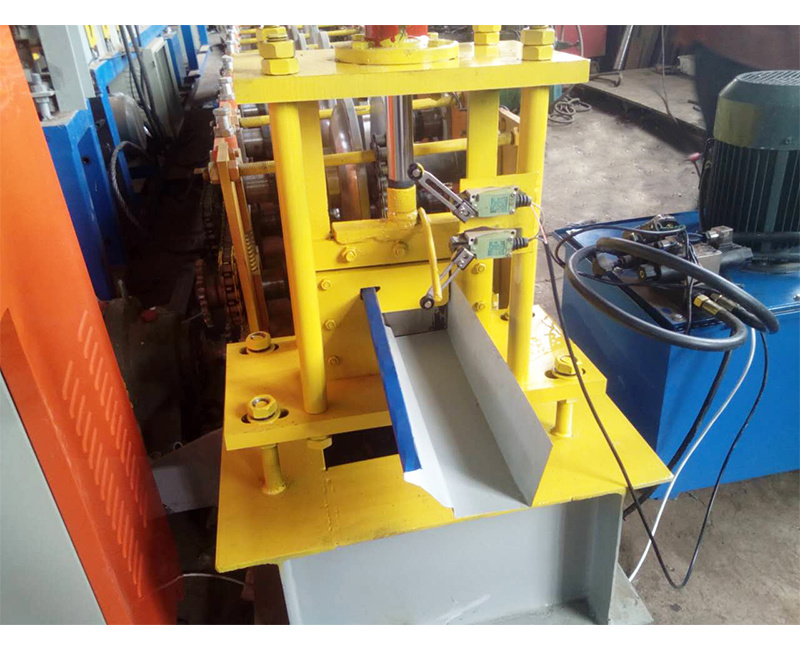

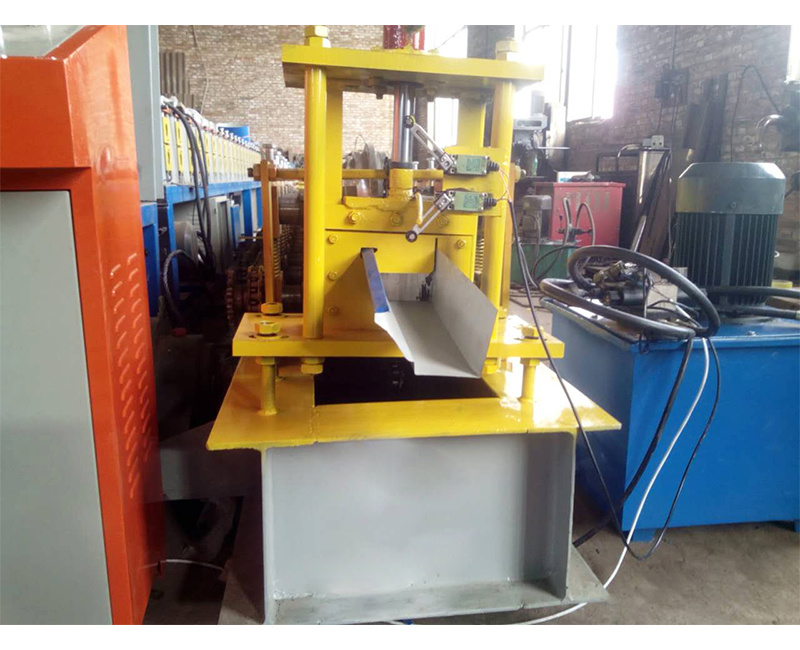

2. Cut off:

-When the board reaches the required length, the molding machine will cut it to ensure the accurate size of each gutter component.

3. Collection and organization:

-The cut gutter components will be collected and further processed as needed, such as surface treatment, marking, etc.

4. Quality inspection:

-Conduct quality inspection on the finished product to ensure there are no defects or deformations.

Product introduction

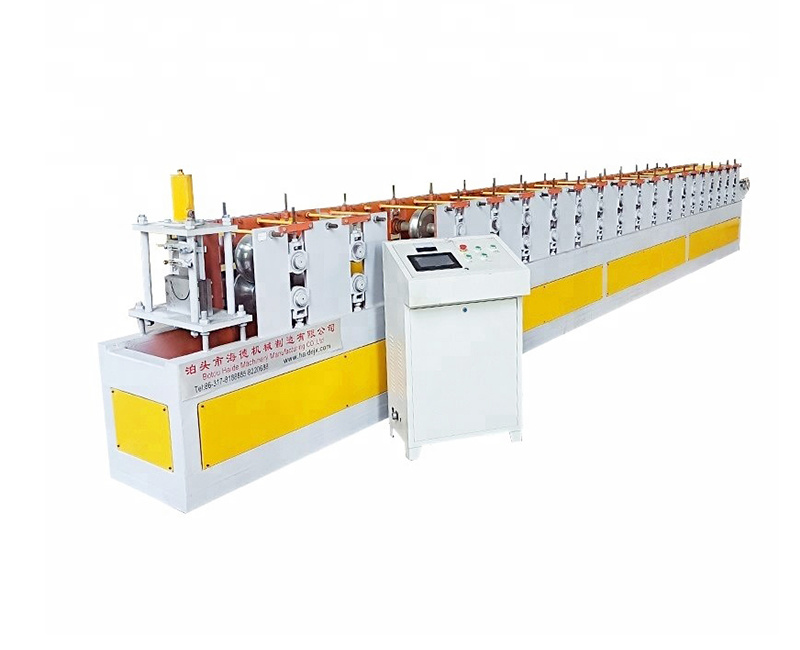

Drainage ditch rolling forming machine

Various types of suppliers

Workflow of gutter forming machine:

1. Raw material preparation:

-Prepare the metal sheets that need to be processed, common materials include galvanized steel sheets, aluminum sheets, etc.

2. Feed:

-Feed the metal sheet into the inlet end of the forming machine. Some machines may be equipped with automatic feeding devices, which can achieve continuous production.

3. Pre bending:

-In order to ensure a smooth transition during the subsequent forming process, preliminary bending treatment is sometimes carried out before the sheet enters the main forming part.

4. Continuous molding:

-During the rolling process, the sheet will undergo multiple bending and straightening until the final gutter shape is formed.

5. Cut off:

-When the board reaches the required length, the molding machine will cut it to ensure the accurate size of each gutter component.

6. Collection and organization:

-The cut gutter components will be collected and further processed as needed, such as surface treatment, marking, etc.

7. Quality inspection:

-Conduct quality inspection on the finished product to ensure there are no defects or deformations.

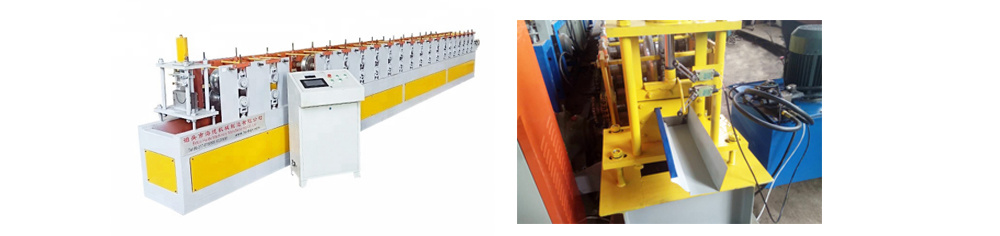

Various types and styles of gutter forming machines:

Technical parameter

Forming rows	16-20 rows
Chain	1 "-2"
Speed	10-20m/min
Host	3kw-11kw
Pattern	Accepting customized customer patterns

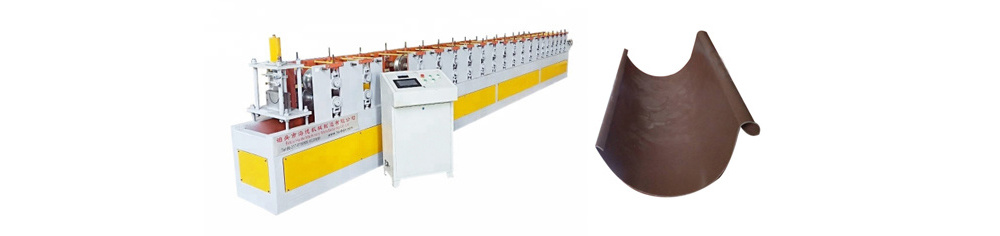

Drainage ditch rolling forming machine

The company has vigorously introduced the German professional roller design software COPRA, which can design various rollers according to customer needs.

Manual uncoiler

Free manual uncoiler

The coil inner diameter: φ450-550mm;
Max. outer coil diameter: φ1000mm-1250mm
The max capacity: 5T

Machine shaft

All machines are finished with Cr12 rollers
Shaft hardness 58-60
Hardening depth 0.8mm
Surface roughness ra0.1m-0.35m
High quality shaft with a service life of over 15 years

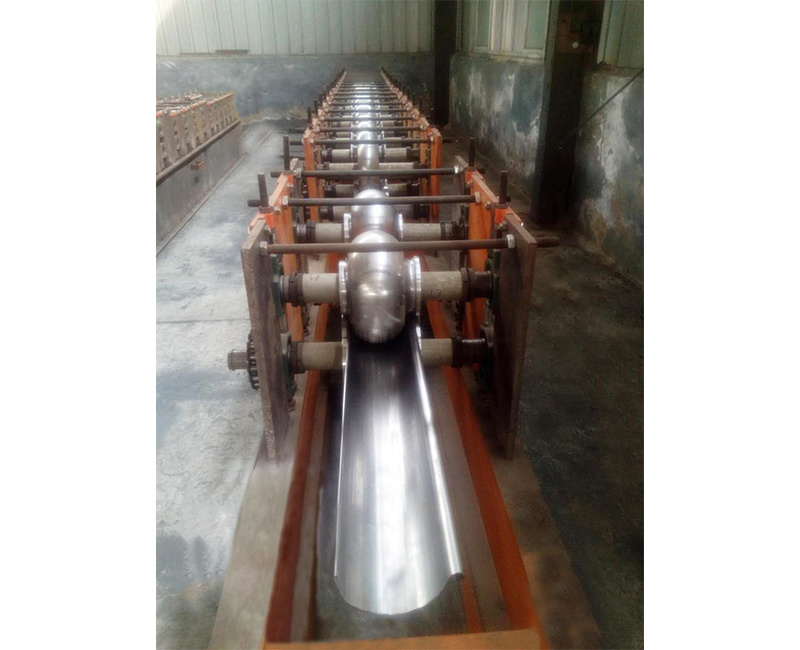

Customer usage site

We designed and produced this machine for the customer based on the product drawings provided by him.

Company Profile

Our products are mainly used in the production of steel structure industry C, Z type sandalwood, floor bearing formwork and roof, wall maintenance structure color board or insulation board; Environmental protection industry dust anode plate, cathode plate; Transportation industry high-speed guard plate, automobile cold-formed profiles; All kinds of glazed tile/press type, building floor, rolling shutter door and all kinds of cold bending forming equipment, can also provide users with a variety of coil unwinding, leveling, longitudinal shear winding, transverse shear palletizing production lines.

Our Customers

We sell products to the United States, Australia, the Netherlands, Germany, Ecuador, Bolivia, Thailand, Malaysia, Indonesia, India, the Philippines, Bangladesh, Nigeria, South Africa, Ethiopia, Syria, Libya, Ghana, Sudan, Saudi Arabia, the United Arab Emirates, Turkey, Azerbaiian and other markets.

Packing

FAQs

1. Does your company can customized my needed profile?
Yes sir/Madam. Our machines are all customized according to customers' requests. Just provided me your needed profile drawing and we can give you our professional machine design solution.

2. If i don't have profile drawing, but i want to buy one machine, can you help me?
Yes sir/ Madam. If you don't have profile drawings, the solutions have:
2.1 : Provide me with your profiles' pictures ;
2.2 : Tell me your country and i will check if we sell similar / related profile machines to your there. I will recommend you related profile drawings.
2.3 : Tell me any information you have and it will be helpful for me to clear your needed profiles. and then quote you.

3. What your company advantages?
Yes sir/Madam. Our advantages have :
3.1: We are a 15 years big factory. We have abundant machine designing and making experience. We can give you the best machine solution.
3.2: We have completed production system. And more than 20 sets of CNC machines which can support lots of machine orders' making and guarantee the delivery.
3.3 : We have 20 years foreign trade exported experience. Our sellers abundant experience can guarantee you will have a pleasant purchase and use of the machine and after-sales experience. And cooperated with us , you can get more details about the machine, including those problems that you can't think of but we can think of, we can tell you to ensure that you can buy the most suitable machine for you.
3.4 : We are a golden integrity roll forming machine company.
About the after-sale services, no worries, we will responsible for you.

4. Will i receive a good machine ? Same Like I wanted to?
Yes sir/Madam. We will do the machine according to your profile drawing . About the profile drawing, we will confirm with you again before producing your machine. Then, after the machine finished, we will test the machine and guarantee the machine you received is a good machine. Because after you satisfied with the machine, and then you pay balance.

5. What is the machine minimum quantity?
One machine is okay.

6. What is your payment terms?
6.1 : We accept 30% T/T as deposit and 70% T/T as balance before shipping.
6.2 : We accept 100% L/C at sight
6.3: We accept Western Union payments.
6.4 : Other payment terms you want to pay, please let me know and i will check and reply you.
