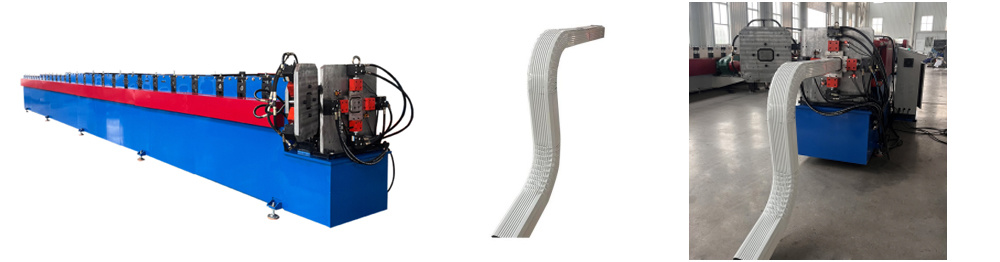

Rain downspout Drain Pipe Roll Forming Machine square downspout machine

Machine introduction

The downspout forming machine is mainly used to produce components in various metal downspout systems, such as downspouts, guide pipes, elbows, etc. These machines are typically designed to process metal sheets, processing flat materials into the desired shape through a series of processes such as rolling, bending, cutting, etc.

Product introduction

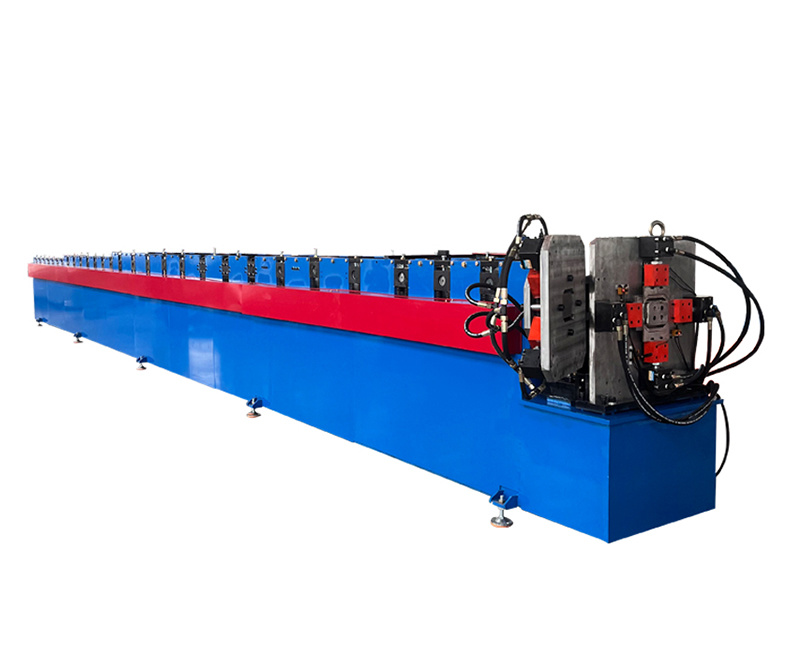

Rain downspout Drain Pipe Roll Forming Machine square downspout machine

Various water pipe support pipe suppliers

Composition of downspout equipment:

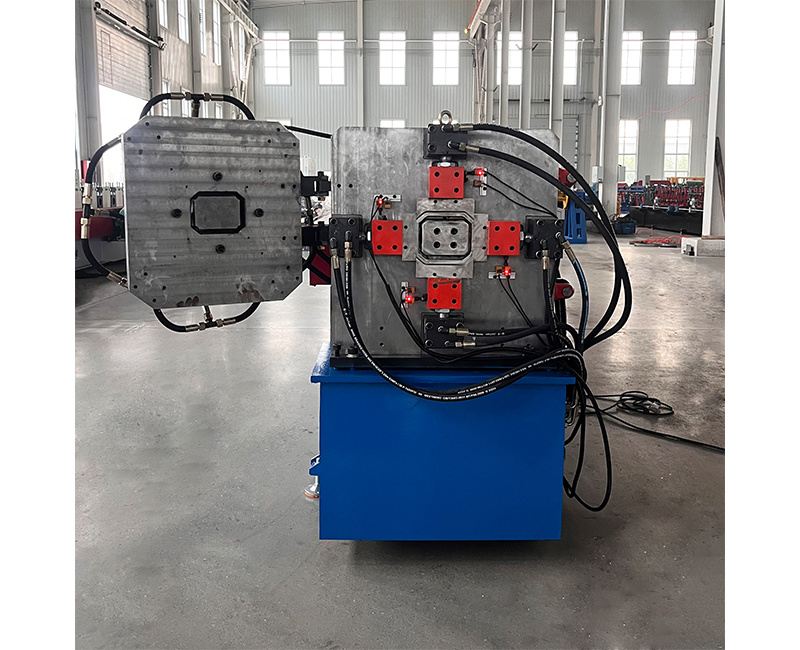

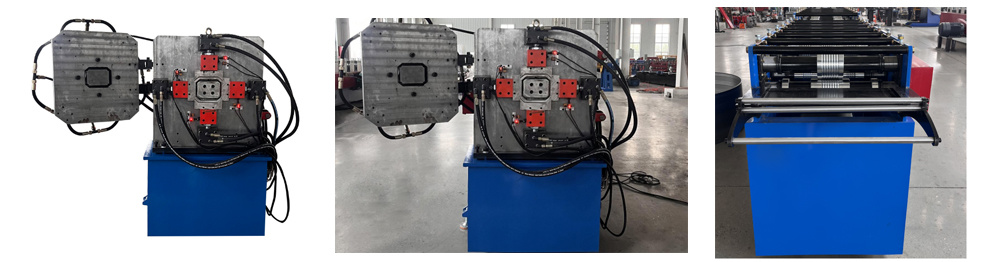

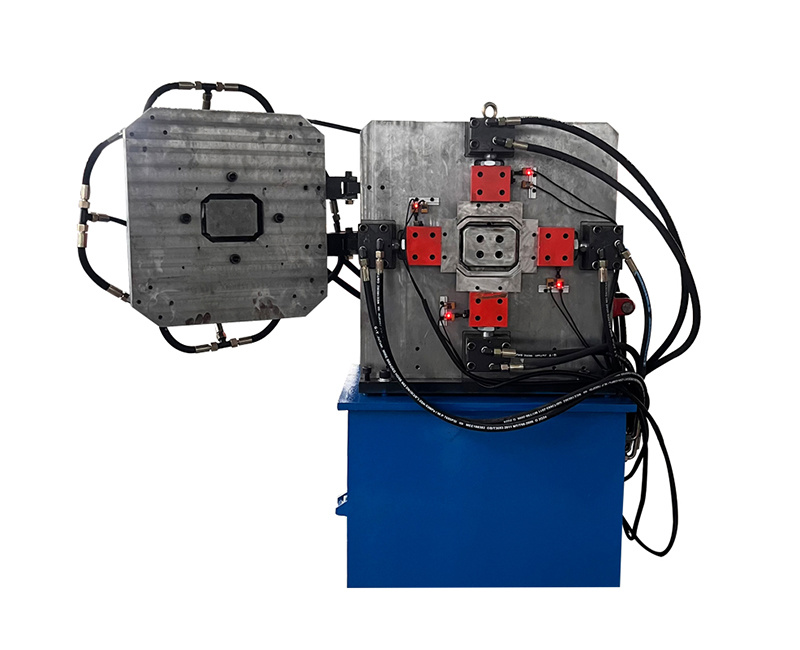

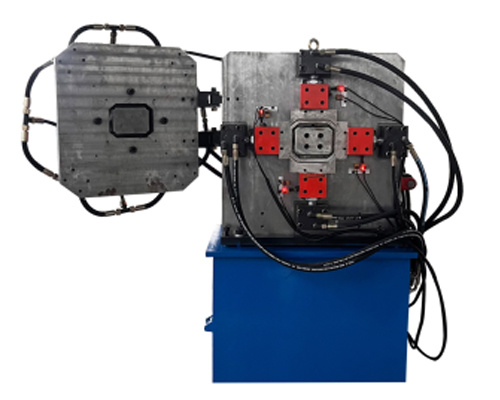

1 passive material rack, 1 forming host, 1 hydraulic forming shear, 1 computer control cabinet, 1 hydraulic oil tank, 2 discharge platforms, and 1 pipe bending machineThe products formed by rolling with this machine have a longer usage time than traditional PPC pipes, are less prone to aging, make the entire project more unified, and help improve the image of the entire project.

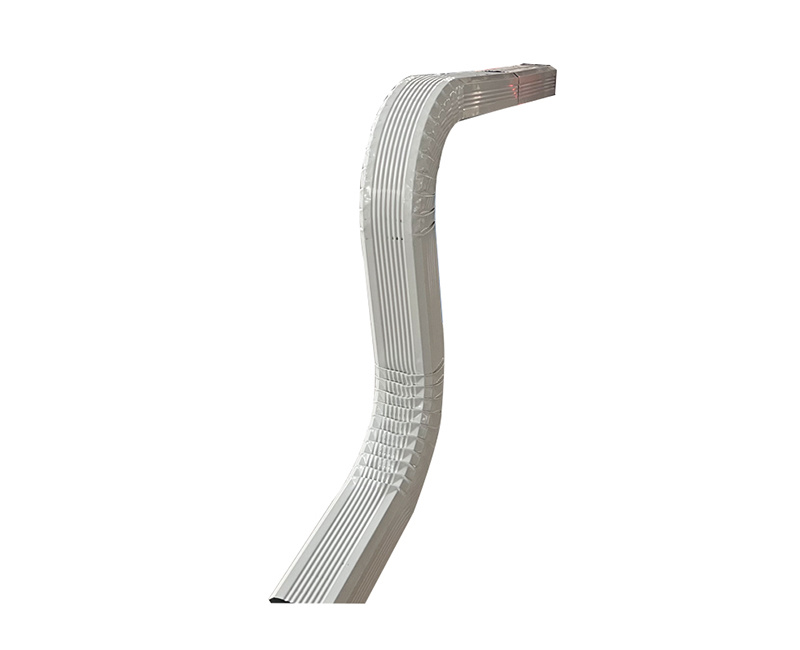

The matching bending machine for downspouts can bend the rolled downspouts into connecting bends, making the downspouts and their bends seamlessly integrated.

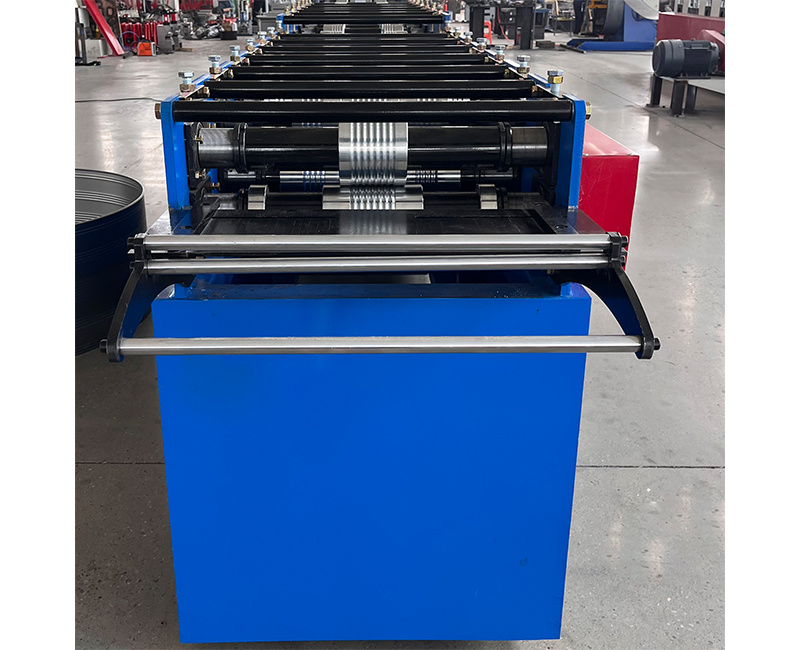

The downpipe machine consists of several parts, including a discharge machine, an unwinding device, a feed guide device, a forming host, a forming cutting device, a hydraulic system, a control system, and a finished product bracket

Technical parameter

Installation dimensions	12000mm × 1000mm × 1400mm
Roller material	45 # steel
Thickness of roller electroplating layer	0.05mm
Cutting blade material	Cr12
Molding speed	9m/min
Electrical control system	Industrial computer PLC control
Host power	3KW
Hydraulic station power	3KW
Hydraulic station pressure	18-20Mpa
Plate thickness	0.4-0.6mm

Rain downspout Drain Pipe Roll Forming Machine square downspout machine

The company has vigorously introduced the German professional roller design software COPRA, which can design various rollers according to customer needs.

Manual uncoiler

Free manual uncoiler

The coil inner diameter: φ450-550mm;
Max. outer coil diameter: φ1000mm-1250mm
The max capacity: 5T

Machine shaft

All machines are finished with Cr12 rollers
Shaft hardness 58-60
Hardening depth 0.8mm
Surface roughness ra0.1m-0.35m
High quality shaft with a service life of over 15 years

Customer usage site

We designed and produced this machine for the customer based on the product drawings provided by him.

Company Profile

Our products are mainly used in the production of steel structure industry C, Z type sandalwood, floor bearing formwork and roof, wall maintenance structure color board or insulation board; Environmental protection industry dust anode plate, cathode plate; Transportation industry high-speed guard plate, automobile cold-formed profiles; All kinds of glazed tile/press type, building floor, rolling shutter door and all kinds of cold bending forming equipment, can also provide users with a variety of coil unwinding, leveling, longitudinal shear winding, transverse shear palletizing production lines.

Our Customers

We sell products to the United States, Australia, the Netherlands, Germany, Ecuador, Bolivia, Thailand, Malaysia, Indonesia, India, the Philippines, Bangladesh, Nigeria, South Africa, Ethiopia, Syria, Libya, Ghana, Sudan, Saudi Arabia, the United Arab Emirates, Turkey, Azerbaiian and other markets.

Packing

FAQs

1. Does your company can customized my needed profile?
Yes sir/Madam. Our machines are all customized according to customers' requests. Just provided me your needed profile drawing and we can give you our professional machine design solution.

2. If i don't have profile drawing, but i want to buy one machine, can you help me?
Yes sir/ Madam. If you don't have profile drawings, the solutions have:
2.1 : Provide me with your profiles' pictures ;
2.2 : Tell me your country and i will check if we sell similar / related profile machines to your there. I will recommend you related profile drawings.
2.3 : Tell me any information you have and it will be helpful for me to clear your needed profiles. and then quote you.

3. What your company advantages?
Yes sir/Madam. Our advantages have :
3.1: We are a 15 years big factory. We have abundant machine designing and making experience. We can give you the best machine solution.
3.2: We have completed production system. And more than 20 sets of CNC machines which can support lots of machine orders' making and guarantee the delivery.
3.3 : We have 20 years foreign trade exported experience. Our sellers abundant experience can guarantee you will have a pleasant purchase and use of the machine and after-sales experience. And cooperated with us , you can get more details about the machine, including those problems that you can't think of but we can think of, we can tell you to ensure that you can buy the most suitable machine for you.
3.4 : We are a golden integrity roll forming machine company.
About the after-sale services, no worries, we will responsible for you.

4. Will i receive a good machine ? Same Like I wanted to?
Yes sir/Madam. We will do the machine according to your profile drawing . About the profile drawing, we will confirm with you again before producing your machine. Then, after the machine finished, we will test the machine and guarantee the machine you received is a good machine. Because after you satisfied with the machine, and then you pay balance.

5. What is the machine minimum quantity?
One machine is okay.

6. What is your payment terms?
6.1 : We accept 30% T/T as deposit and 70% T/T as balance before shipping.
6.2 : We accept 100% L/C at sight
6.3: We accept Western Union payments.
6.4 : Other payment terms you want to pay, please let me know and i will check and reply you.
