Machine introduction
characteristic:
1. High degree of automation: These machines are usually fully automated, which can significantly reduce the need for manual operation, thereby reducing labor costs and improving production efficiency.
2. High precision: The machine leaves almost no scratches during the rolling process and has minimal deformation during the cutting process, ensuring high quality of the produced guardrail panels.

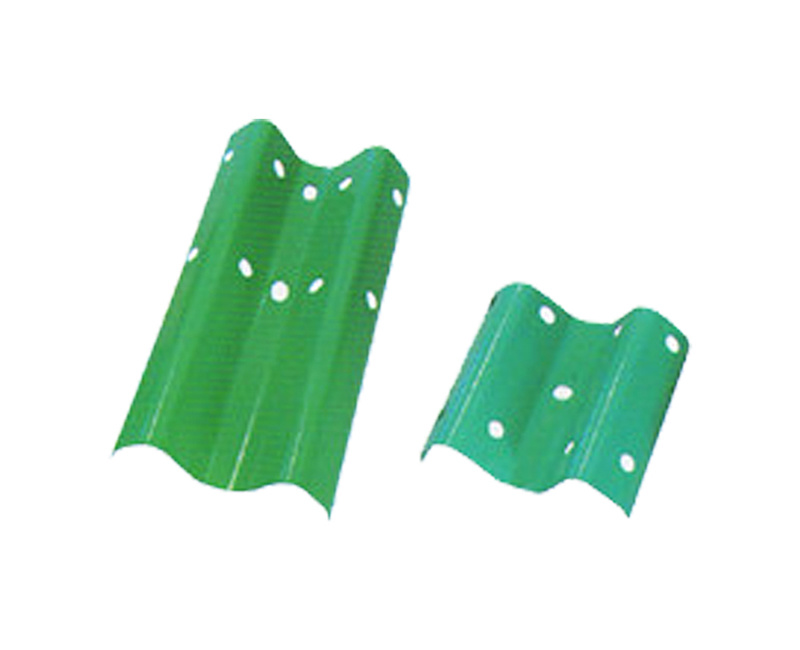

3. Flexibility: By replacing different rollers, the machine can produce different types of guardrail panels, such as two wave or three wave guardrail panels.
4. Easy to operate: The device design is user-friendly and easy for operators to use, even a single person can complete production tasks.
5. Strong durability: This type of molding machine is usually made of high-quality materials, able to withstand long-term working pressure, and has a low failure rate.
Product introduction

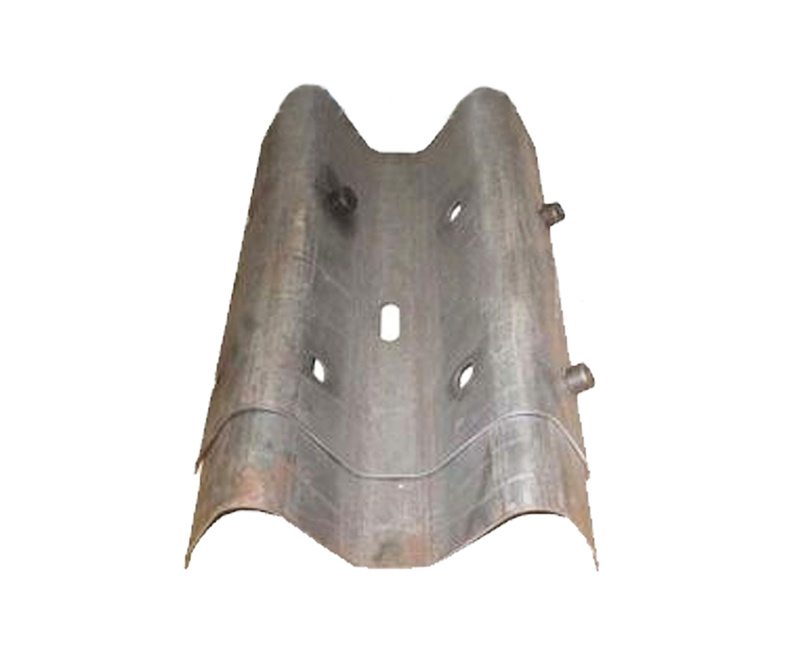

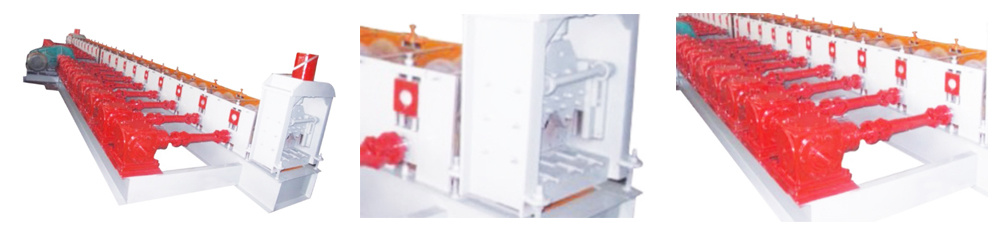

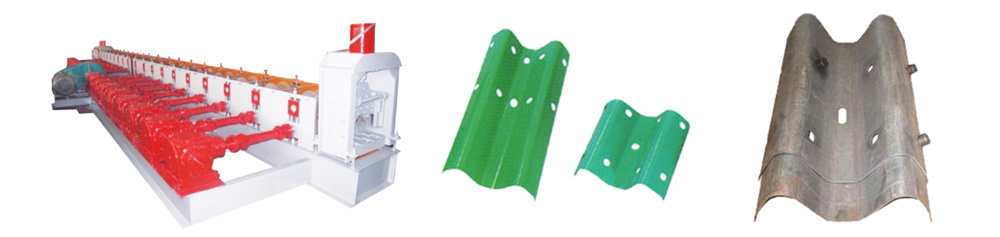

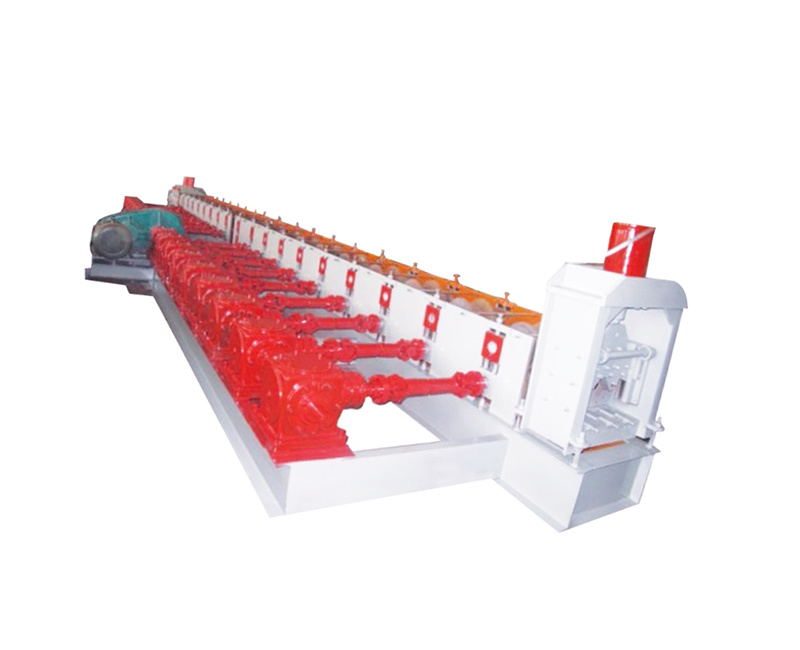

Highway Guardrail W Beam Machine highway guardrail roll forming machine
Various types of suppliers
Composition of high-speed guardrail forming machine：
-Uncoiler: used to open coiled raw materials (such as steel plates).
-Leveling machine: to make the material flat and facilitate subsequent processing.
-Punching machine: Punching necessary holes on the sheet metal, such as holes for connection.
-Punching machine: If necessary, punch holes in the middle position of the sheet.

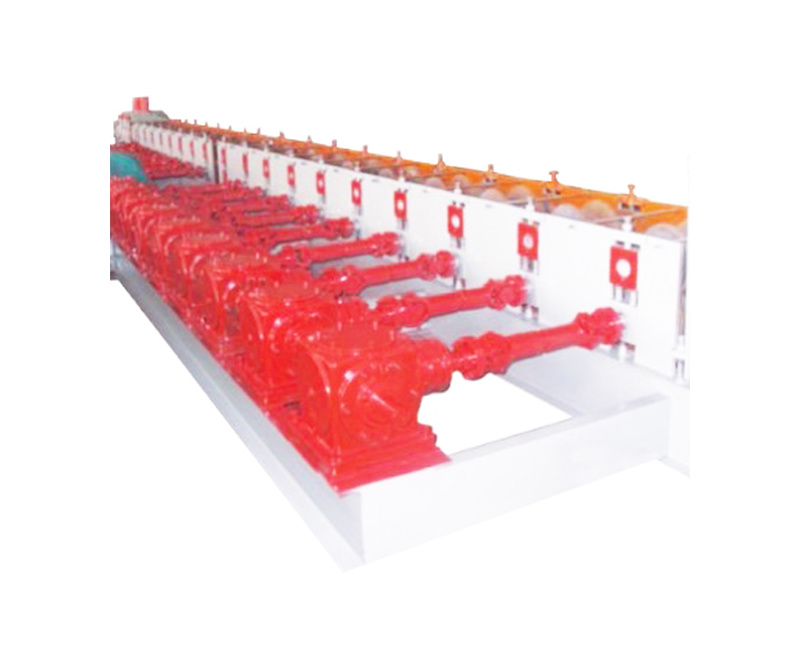

-Forming host: The board is pressed into the desired waveform or other shape through a series of rollers.

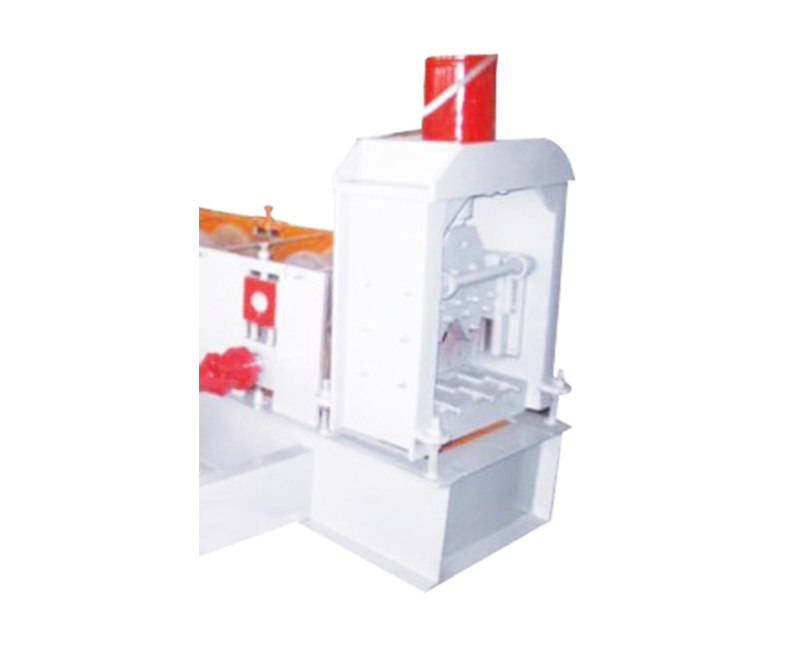

-Forming and cutting device: completes the final cutting to ensure the precise size of the product.
-Hydraulic station: provides power support to drive various actions of the machine.
-Computer control system: controls the entire production process to ensure production efficiency and product quality.
-Finished bracket: Collect processed guardrail panels.
Pattern diagram of high-speed guardrail forming machine：
Technical parameter
| Dimensions | 16000mm × 2500mm × 1300mm |
| Board thickness | 3.0-4.0mm |
| Hydraulic power | 15kw |
| Motor power | 37kw |
| Medium plate thickness | 25mm |
| Working speed | 8-12m/min |
| Transmission mode | chain wheel, chain |
| Shaft material | 45 # steel, shaft diameter 100mm |
| Wheel material | Bearing steel |
| Large frame | 400 I-beams |
| Blade material | cr12 |
| Rows | 18 rows |
Highway Guardrail W Beam Machine highway guardrail roll forming machine
The company has vigorously introduced the German professional roller design software COPRA, which can design various rollers according to customer needs.
Manual uncoiler
Free manual uncoiler
The coil inner diameter: φ450-550mm;
Max. outer coil diameter: φ1000mm-1250mm
The max capacity: 5T
Machine shaft
All machines are finished with Cr12 rollers
Shaft hardness 58-60
Hardening depth 0.8mm
Surface roughness ra0.1m-0.35m
High quality shaft with a service life of over 15 years
Customer usage site
We designed and produced this machine for the customer based on the product drawings provided by him.
Company Profile
Our products are mainly used in the production of steel structure industry C, Z type sandalwood, floor bearing formwork and roof, wall maintenance structure color board or insulation board; Environmental protection industry dust anode plate, cathode plate; Transportation industry high-speed guard plate, automobile cold-formed profiles; All kinds of glazed tile/press type, building floor, rolling shutter door and all kinds of cold bending forming equipment, can also provide users with a variety of coil unwinding, leveling, longitudinal shear winding, transverse shear palletizing production lines.
Our Customers
We sell products to the United States, Australia, the Netherlands, Germany, Ecuador, Bolivia, Thailand, Malaysia, Indonesia, India, the Philippines, Bangladesh, Nigeria, South Africa, Ethiopia, Syria, Libya, Ghana, Sudan, Saudi Arabia, the United Arab Emirates, Turkey, Azerbaiian and other markets.
Packing
FAQs
1. Does your company can customized my needed profile?
Yes sir/Madam. Our machines are all customized according to customers' requests. Just provided me your needed profile drawing and we can give you our professional machine design solution.
2. If i don't have profile drawing, but i want to buy one machine, can you help me?
Yes sir/ Madam. If you don't have profile drawings, the solutions have:
2.1 : Provide me with your profiles' pictures ;
2.2 : Tell me your country and i will check if we sell similar / related profile machines to your there. I will recommend you related profile drawings.
2.3 : Tell me any information you have and it will be helpful for me to clear your needed profiles. and then quote you.
3. What your company advantages?
Yes sir/Madam. Our advantages have :
3.1: We are a 15 years big factory. We have abundant machine designing and making experience. We can give you the best machine solution.
3.2: We have completed production system. And more than 20 sets of CNC machines which can support lots of machine orders' making and guarantee the delivery.
3.3 : We have 20 years foreign trade exported experience. Our sellers abundant experience can guarantee you will have a pleasant purchase and use of the machine and after-sales experience. And cooperated with us , you can get more details about the machine, including those problems that you can't think of but we can think of, we can tell you to ensure that you can buy the most suitable machine for you.
3.4 : We are a golden integrity roll forming machine company.
About the after-sale services, no worries, we will responsible for you.
4. Will i receive a good machine ? Same Like I wanted to?
Yes sir/Madam. We will do the machine according to your profile drawing . About the profile drawing, we will confirm with you again before producing your machine. Then, after the machine finished, we will test the machine and guarantee the machine you received is a good machine. Because after you satisfied with the machine, and then you pay balance.
5. What is the machine minimum quantity?
One machine is okay.
6. What is your payment terms?
6.1 : We accept 30% T/T as deposit and 70% T/T as balance before shipping.
6.2 : We accept 100% L/C at sight
6.3: We accept Western Union payments.
6.4 : Other payment terms you want to pay, please let me know and i will check and reply you.
