Machine introduction
Specifically, the workflow of the high-speed guardrail forming machine is roughly as follows:
1. Feeding: Place the rolled steel plate on the unwinding machine.
2. Leveling: Use a leveling machine to make the steel plate flat.
3. Punching: Use a punching machine to punch necessary holes in the steel plate.
4. Pressing: The steel plate is pressed into a waveform or other desired shape through multiple sets of rollers in the forming host.
5. Cutting: Use a forming cutting device to cut the formed guardrail board to a predetermined length.
6. Discharge: Move the processed guardrail board onto the finished product rack.

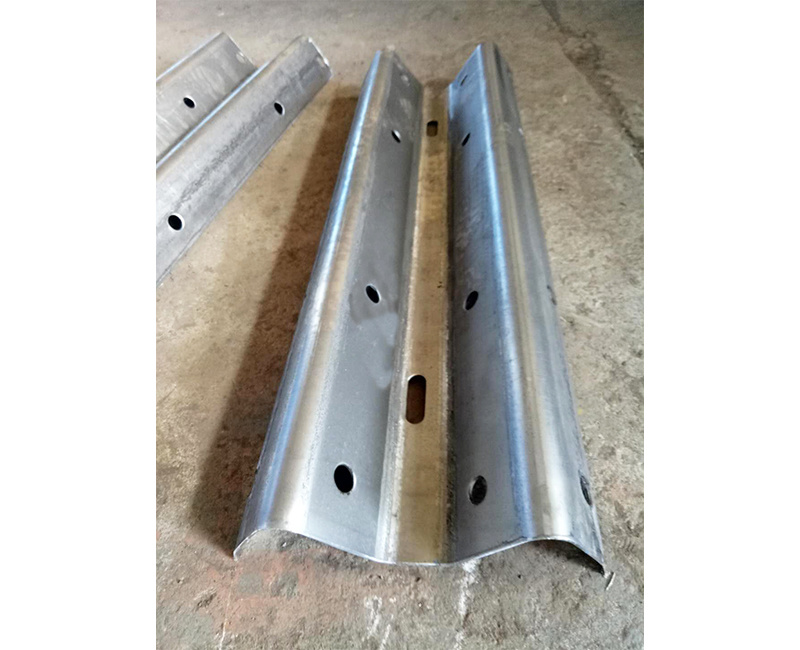

The products produced by the high-speed guardrail forming machine have the characteristics of light weight and strong load-bearing capacity, so they are widely used in highways, bridges, and other places that require safety protection. These guardrails not only protect vehicles in motion, but also effectively reduce the severity of traffic accidents.
Product introduction

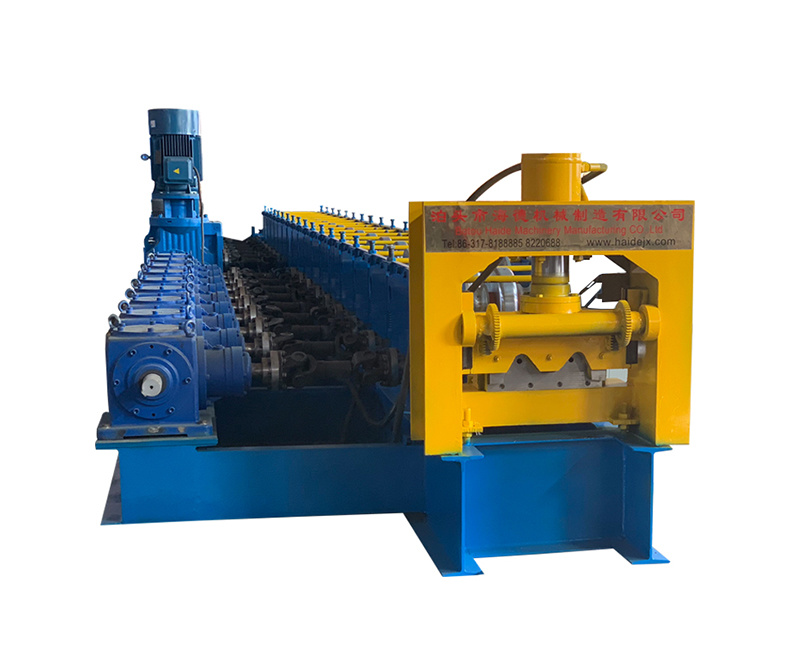

310 Elevated Bridge Fence Forming Machine
Various types of suppliers
Composition of high-speed guardrail forming machine：
-Uncoiler: used to open coiled raw materials (such as steel plates).
-Leveling machine: to make the material flat and facilitate subsequent processing.
-Punching machine: Punching necessary holes on the sheet metal, such as holes for connection.
-Punching machine: If necessary, punch holes in the middle position of the sheet.
-Forming host: The board is pressed into the desired waveform or other shape through a series of rollers.
-Forming and cutting device: completes the final cutting to ensure the precise size of the product.
-Hydraulic station: provides power support to drive various actions of the machine.
-Computer control system: controls the entire production process to ensure production efficiency and product quality.
-Finished bracket: Collect processed guardrail panels.
Pattern diagram of high-speed guardrail forming machine：
Technical parameter
| Dimensions | 16000mm × 2500mm × 1300mm |
| Board thickness | 3.0-4.0mm |
| Hydraulic power | 15kw |
| Motor power | 37kw |
| Medium plate thickness | 25mm |
| Working speed | 8-12m/min |
| Transmission mode | chain wheel, chain |
| Shaft material | 45 # steel, shaft diameter 100mm |
| Wheel material | Bearing steel |
| Large frame | 400 I-beams |
| Blade material | cr12 |
| Rows | 18 rows |

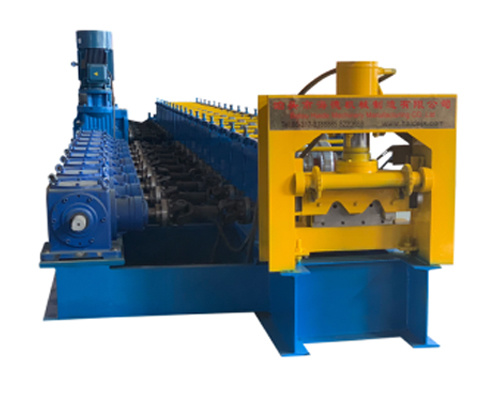

310 Elevated Bridge Fence Forming Machine
The company has vigorously introduced the German professional roller design software COPRA, which can design various rollers according to customer needs.
Manual uncoiler
Free manual uncoiler
The coil inner diameter: φ450-550mm;
Max. outer coil diameter: φ1000mm-1250mm
The max capacity: 5T
Machine shaft
All machines are finished with Cr12 rollers
Shaft hardness 58-60
Hardening depth 0.8mm
Surface roughness ra0.1m-0.35m
High quality shaft with a service life of over 15 years

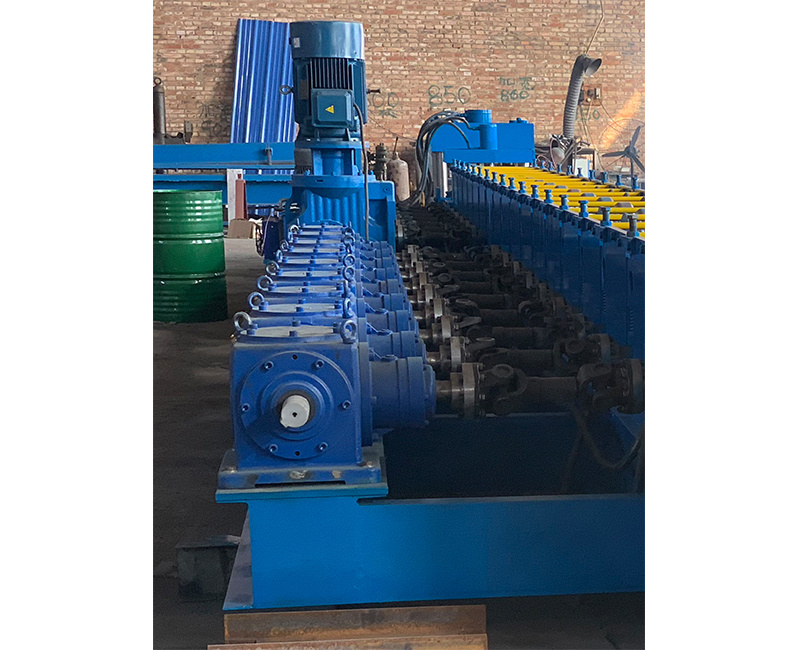

Customer usage site
We designed and produced this machine for the customer based on the product drawings provided by him.
