Machine introduction
characteristic:
1. High degree of automation: Modern uncoiler machines are usually equipped with automatic control systems, which can achieve functions such as automatic feeding and tension control, improving production efficiency.
2. Wide applicability: Parameters can be adjusted according to different coil materials (such as steel, aluminum, paper, etc.) and thickness, suitable for unwinding coils of various materials.
3. Stability performance: A good unwinding machine can maintain stable tension output, ensuring that the material will not be scratched or deformed during the unfolding process, and guaranteeing the quality of subsequent processes.
4. Compact structure: The design usually strives for compactness, space saving, and easy maintenance.
Product introduction

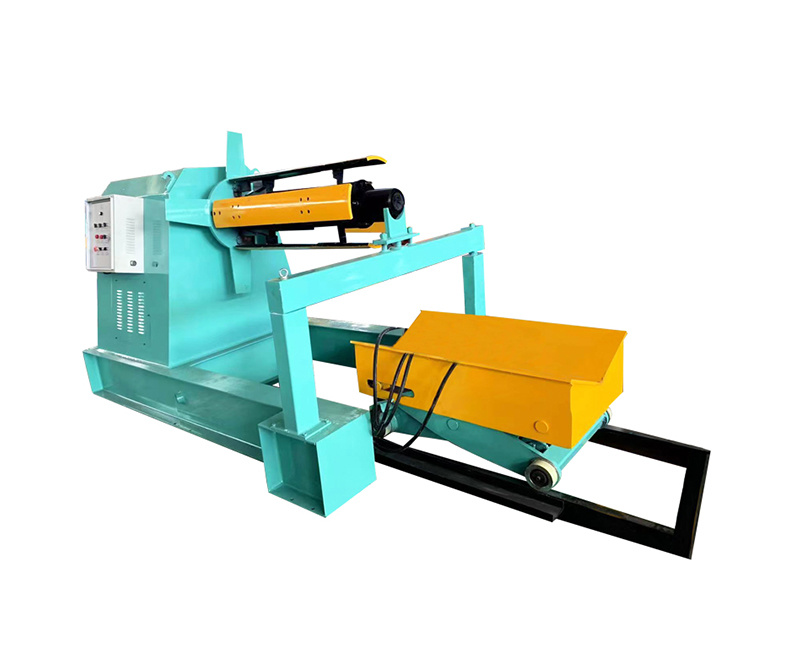

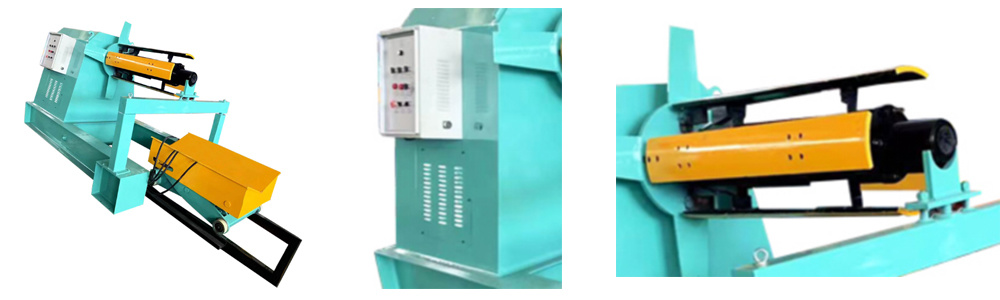

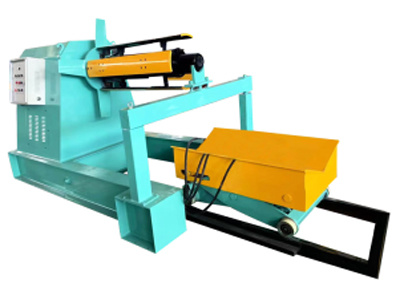

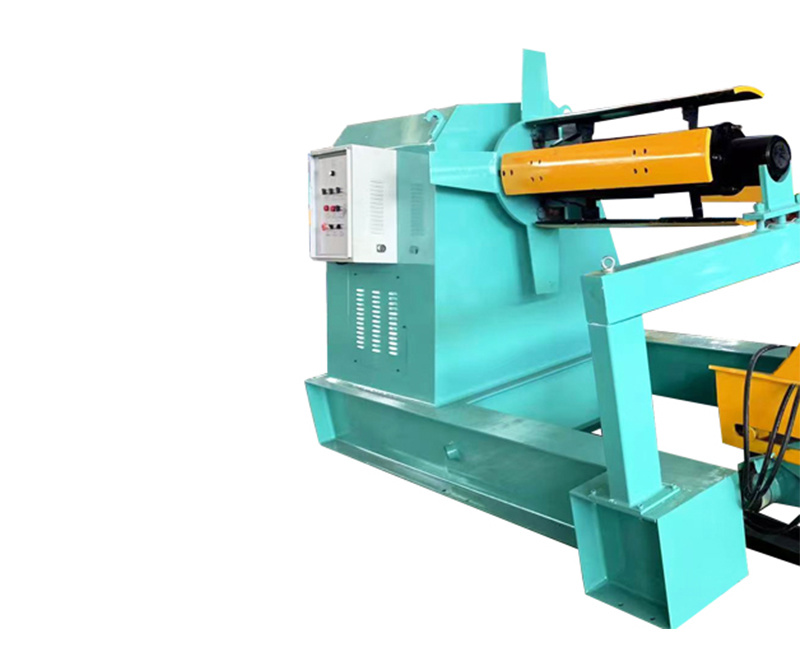

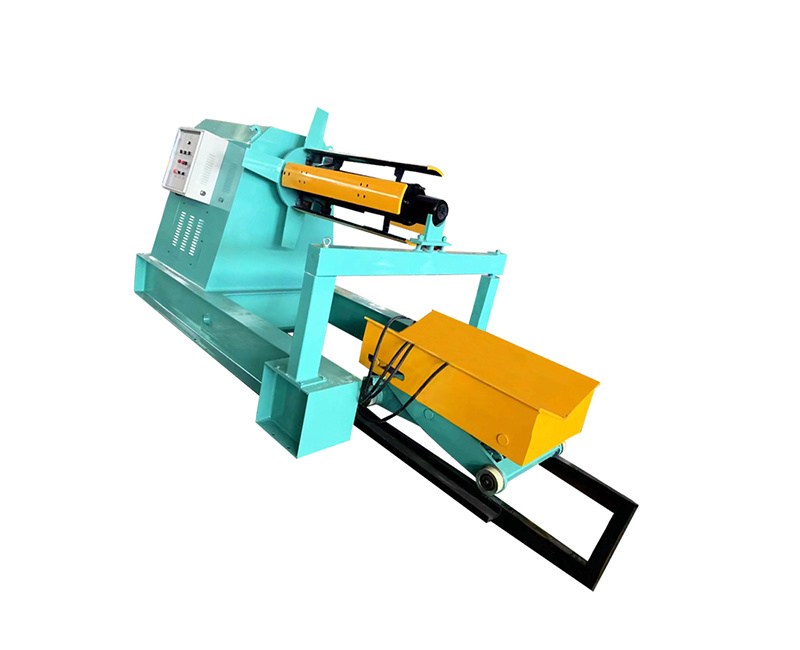

Heavy duty automatic hydraulic unwinding machine with trolley
Operation process of automatic hydraulic unwinding machine
1、 Preparation stage
Check if the power connection is normal and ensure that the power switch is turned off.
Check if there are any loose or abnormal parts of the machine, and adjust them in a timely manner if necessary.
Ensure that the roll material is placed on the feeding rack and the core is aligned with the machine's feed port.
2、 Start up phase
Turn on the power switch and start the machine.
Observe whether the machine is running normally and whether there are any abnormal sounds or vibrations.
After confirming that the machine is running smoothly, proceed to the next step of operation.
3、 Operation phase
Introduce the lead into the feeding port and use a traction device to guide it into the interior of the machine.
Adjust the pressure and speed of the leveling wheel to ensure that the metal sheet gradually flattens under the action of the leveling wheel.
Adjust the position and size of the cutting device according to the required dimensions, and cut the metal sheet to the desired length.
Observe the operation of the machine to ensure that the cutting and flattening effects meet the requirements.
4、 End stage
Press the stop button to stop the machine from running.
Place the flattened metal sheet reel on the cutting platform and have the operator take it away.
Clean up residual metal debris and debris on the surface of the machine to keep it clean.
Turn off the power switch to end this operation.
The company has vigorously introduced the German professional roller design software COPRA, which can design various rollers according to customer needs.
Manual uncoiler
Free manual uncoiler
The coil inner diameter: φ450-550mm;
Max. outer coil diameter: φ1000mm-1250mm
The max capacity: 5T
Machine shaft
All machines are finished with Cr12 rollers
Shaft hardness 58-60
Hardening depth 0.8mm
Surface roughness ra0.1m-0.35m
High quality shaft with a service life of over 15 years
Customer usage site
We designed and produced this machine for the customer based on the product drawings provided by him.
Company Profile
Our products are mainly used in the production of steel structure industry C, Z type sandalwood, floor bearing formwork and roof, wall maintenance structure color board or insulation board; Environmental protection industry dust anode plate, cathode plate; Transportation industry high-speed guard plate, automobile cold-formed profiles; All kinds of glazed tile/press type, building floor, rolling shutter door and all kinds of cold bending forming equipment, can also provide users with a variety of coil unwinding, leveling, longitudinal shear winding, transverse shear palletizing production lines.
Our Customers
We sell products to the United States, Australia, the Netherlands, Germany, Ecuador, Bolivia, Thailand, Malaysia, Indonesia, India, the Philippines, Bangladesh, Nigeria, South Africa, Ethiopia, Syria, Libya, Ghana, Sudan, Saudi Arabia, the United Arab Emirates, Turkey, Azerbaiian and other markets.
Packing
FAQs
1. Does your company can customized my needed profile?
Yes sir/Madam. Our machines are all customized according to customers' requests. Just provided me your needed profile drawing and we can give you our professional machine design solution.
2. If i don't have profile drawing, but i want to buy one machine, can you help me?
Yes sir/ Madam. If you don't have profile drawings, the solutions have:
2.1 : Provide me with your profiles' pictures ;
2.2 : Tell me your country and i will check if we sell similar / related profile machines to your there. I will recommend you related profile drawings.
2.3 : Tell me any information you have and it will be helpful for me to clear your needed profiles. and then quote you.
3. What your company advantages?
Yes sir/Madam. Our advantages have :
3.1: We are a 15 years big factory. We have abundant machine designing and making experience. We can give you the best machine solution.
3.2: We have completed production system. And more than 20 sets of CNC machines which can support lots of machine orders' making and guarantee the delivery.
3.3 : We have 20 years foreign trade exported experience. Our sellers abundant experience can guarantee you will have a pleasant purchase and use of the machine and after-sales experience. And cooperated with us , you can get more details about the machine, including those problems that you can't think of but we can think of, we can tell you to ensure that you can buy the most suitable machine for you.
3.4 : We are a golden integrity roll forming machine company.
About the after-sale services, no worries, we will responsible for you.
4. Will i receive a good machine ? Same Like I wanted to?
Yes sir/Madam. We will do the machine according to your profile drawing . About the profile drawing, we will confirm with you again before producing your machine. Then, after the machine finished, we will test the machine and guarantee the machine you received is a good machine. Because after you satisfied with the machine, and then you pay balance.
5. What is the machine minimum quantity?
One machine is okay.
6. What is your payment terms?
6.1 : We accept 30% T/T as deposit and 70% T/T as balance before shipping.
6.2 : We accept 100% L/C at sight
6.3: We accept Western Union payments.
6.4 : Other payment terms you want to pay, please let me know and i will check and reply you.
